Mercury brand inverters

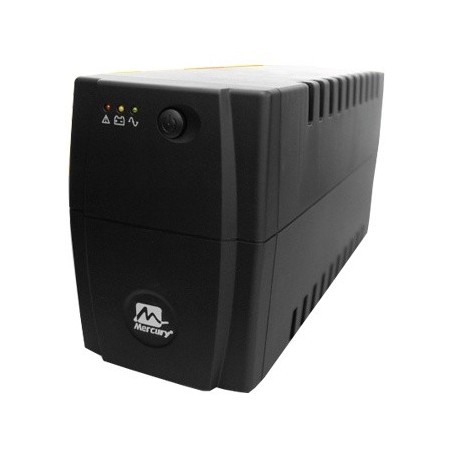

Elite650 pro

- Capacity: 650 Va
- Automatic restart
- Overload protection
- Sleek and compact design with CPU control

35,000 FCFA
Tax excluded
Quantity

  GUARANTEED PRODUCTS

(Quality products under solid warranties)

  Secure payment

(Shop safely)

  Free shipping

(We offer free delivery)

Description

- Building in AVR with a wide range of of entry of 140 ~ 300VAC
- Automatic restart
- Short output protection circut
- Overload protection
- Overload protection
- A sleek and compact design and compact design with control of the CPU CONTROL

Specifications
Input voltage 220VAC
Input frequency 50Hz
Input phase Single phase
Input socket With Fuse
Cold Start (0 to 100% load) Press the ON/OFF switch
Input range (220V) 140V-300V
Rating output (VA). 650VA
Rating output (W). 390W
Rating output (W). Battery mode(simulated sine wave),
AC mode (sine wave)
Power factor 0.6
Rating voltage 220V
Output range 220Vac-7%+15% ( in battary mode )
Rear Output Socket 2xUniversal - Battery backup
Transfer time TYPICAL 4-8 ms
Communication Interface NIL
Rating frequency 50Hz
Output Frequency Line-mode Synchronize with the Utility
Battery mode 50 Hz±1Hz
Output Frequency Line Mode Synchronize with the utility
Short Circuit Protection Line Mode FUSE & firmware protection
Battery Mode Software protection controlled by firmware
Overload Protection Line Mode 110%+-5% (Go to fault mode after 5 minutes),
120%+-5% (Go to fault mode immediately)
Battery Mode 110%+-5% (Shutdown after 5 minutes)
120%+-5% (Shut down immediately)
Rating frequency 12V/8.2AH x 1
Backup Tim - Typical 10mins to 18mins
(depending on load)
Charge Current About 1A at normal mode
Over Charge Protection >14.5V +/- 0.2V stop charging
<13.5V +/- 0.5V Recharge
Weight 5.6kg +/- 0.3Kg
Dimension 390x 145 x 220 (mm)
Master Carton 45.5 x 40 x 23.5 (cm) (4pcs)


Product Details
Elite650 pro
